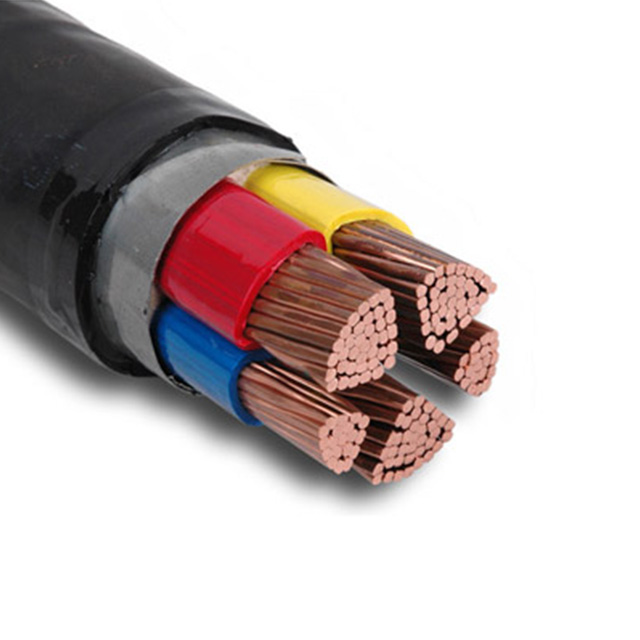

0.6/1KV Low Voltage 4 Core 95mm 120mm 185mm 240mm 300mm XLPE Insulated Underground Armoured PVC Power Cable

Cross-linked polyethylene insulated power cables is characterized with high mechanical strength, strong resistance to environmental stress,excellent electrical properties ,powerful resistance to chemical attack.In addition,the light and simple products are user-friendly
send email to us

Products Details

Cross-linked polyethylene insulated power cables is characterized with high mechanical strength, strong resistance to environmental stress,excellent electrical properties ,powerful resistance to chemical attack.In addition,the light and simple products are user-friendly. This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building, large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.A) during normal operation of cable, the maximum conductor temperature shall be 70℃ for PVC insulation and 90℃ for XLPE insulation. B) Maximum temperature of conductor during short circuit (maximum duration not exceeding 5 seconds) : PVC insulation -- 160℃ for conductor cross section ≤300mm2, 140℃ for conductor cross section > 300mm2; Crosslinked PVC insulation at 250℃. C) When laying cables, the ambient temperature shall not be less than 0℃, and the minimum allowable bending radius is as follows: Single core cable: unarmored 20D, armored 15D Multi-core cable: 15D for unarmored, 12D for armored Where: D- actual outer diameter of cable. D) Cable breaking force: Aluminum core cable: 40×S (N) Copper core cable: 70×S (N) Note: S is the total cross-sectional area of the conductor

Product Name

Armoured power cable

Material

Copper+Xlpe+Pvc

Colour

black

Rated Voltage (v)

0.6/1kv

Core

2/3/4/5 core

MOQ

100m
The product is suitable for power supply, transmission and distribution lines with rated AC voltage U0/U 26/35kV and below.
Model Name APPLICATION
Copper core aluminium core
YJV YJLV XLPE insulated PVC sheathed  power cable Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
YJY YJLY XLPE insulated PE sheathed  power cable Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
YJV22 YJLV22 XLPE insulated steel tape armored PVC sheathed power cable Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
YJV23 YJLV23 XLPE insulated steel tape armored PE sheathed power cable Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
YJV32 YJLV32 XLPE insulated fine steel wire armored PVC sheathed power cable Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
YJV33 YJLV33 XLPE insulated fine steel wire armored PE sheathed power cable Can be laid at indoor, underground .Cable can under take mechanism outside force
1.What are your main products? bare wires,power plant & electrical equipment wire and cable, control cable,electromagnetic wire, 35KV and below power cable, mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable, environmental protection wire cable, steel tape armoured cable, etc 2.Can we have our logo or company name to be printed on your products or the package? Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM project 3.How does your company do regarding Quality Control? 1)All raw material we selected the high quality one. 2)Professional & Skilful workers care every details in handling the producing. 3)Quality Control Department specially responsible for quality checking in each process. 4.How can I get a sample to test your quality? We can provide free samples for you test and checking, you just need to bear the freight charge. 5.How long is your warranty period? 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
